IPEVO TOTEM 120

Specifications



Size & Weight

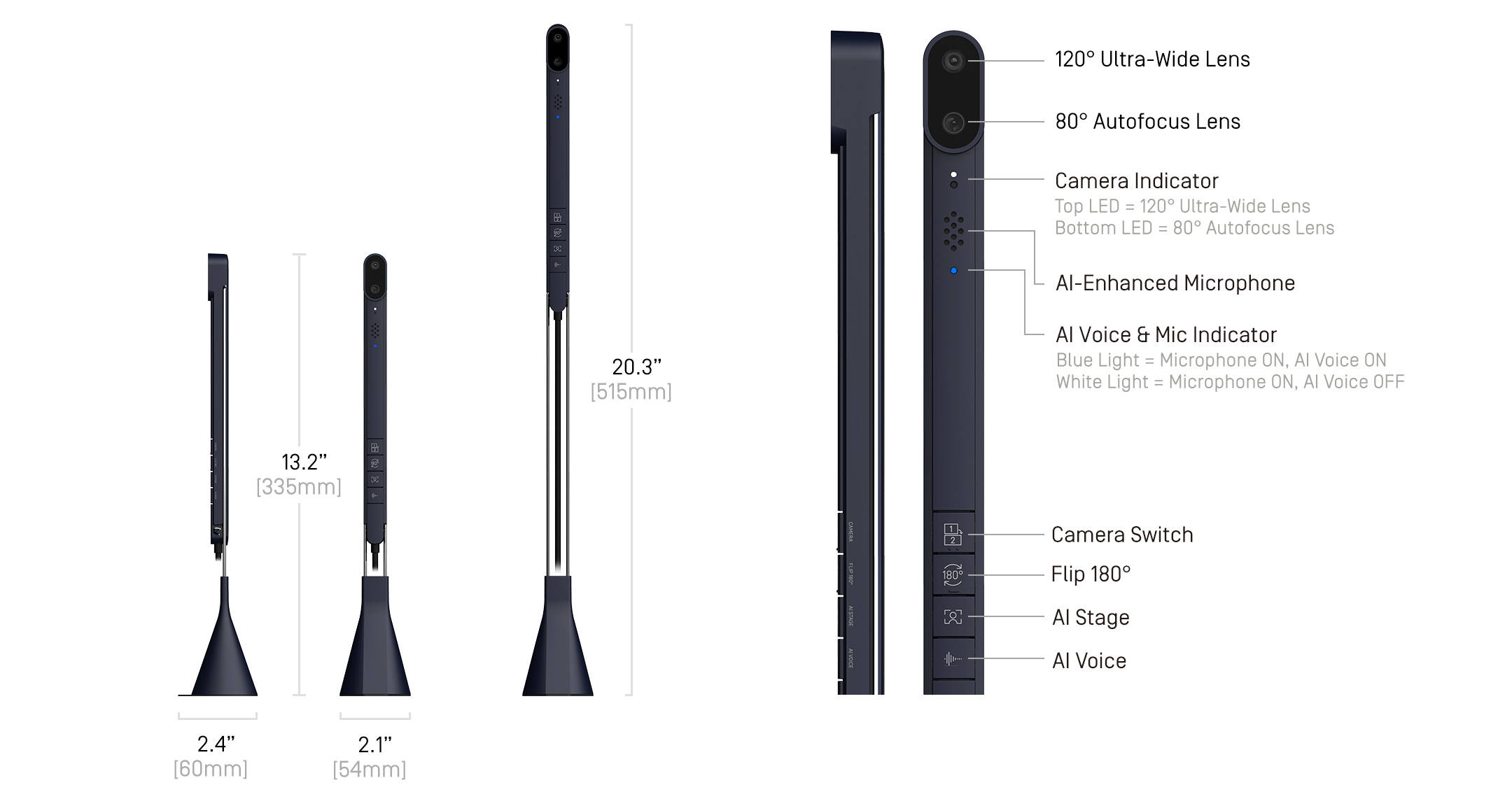

Size (L x W x H)
  • Basic size: 2.4″ x 2.1″ x 13.2″ (60 x 54 x 335 mm)
  • Height when fully extended: 20.3″ (515 mm)
Weight
  • 1 lbs (450g)
Model and Colour
Model
  • CDVU-11IP
Colour
  • Dark blue  Dark blue
Camera
Megapixel
  • 120° lens: 8 MP
  • 80° lens: 8 MP
Resolution
  • 3840 x 2160 (16:9)
  • 3264 x 2448 (4:3)
Frame Rate
  • 3840 x 2160 @ 30fps
  • 3264 x 2448 @ 15fps
Focus
  • 120° lens: Fixed focus
  • 80° lens: Autofocus
Focus Range
  • 120° lens: 19.7″ ~ 297.2″
  • 80° lens: 3.93″ ~ ∞
Built-in Features
Physical Control Buttons
  • Camera switch, image rotation, AI Stage, AI Voice
Microphone
  • Omnidirectional, 16-ft range, EMI filter, Sensitivity: −26dB FS, SNR: 64adB(A)
Compatibility and Output Connectivity
Compatibility (Plug & Play)
  • Mac, Windows PC, or Chromebooks with a USB Type-C port
Max. Capturing Area (when facing downward)
  • 120° lens: A3*
  • 80° lens: A4
  • *Using the 80° lens equipped with autofocus is recommended for viewing text documents.
Package Contents
  • IPEVO TOTEM 120
  • with attached USB cable (3.94 ft / 1.2 m)
  • Quick Installation Guide
Warranty



System Requirements



Mac
Minimum
  • Intel® Core™ i5 CPU 1.8 GHz or higher
  • OS X 10.10 or higher
  • 2 GB RAM
  • 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080)
Recommended
  • Intel® Core™ i5 CPU 2.5 GHz or higher
  • OS X 10.14 or higher
  • 8GB RAM
  • Solid-state drive
  • 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080, and video recording of 1920 x 1080)
Windows
Minimum
  • Microsoft Windows 7 Service Pack 1 or higher
  • Intel® Core™ i3 CPU 3.20 GHz or higher
  • 4 GB RAM
  • 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080)
Recommended
  • Microsoft Windows 10
  • Intel® Core™ i5 CPU 3.40 GHz or higher
  • 8GB RAM
  • 256MB of dedicated video memory (For lag-free live streaming up to 1920 x 1080, and video recording of 1920 x 1080)
Chromebooks
  • Chromebooks with a USB Type-C port



 Sustainability



Treatment Efficiency
IPEVO TOTEM 120 complies with the Waste Electrical and Electronic Equipment (WEEE) Directive, and is manufactured, sold and disposed of in a safe and environmentally friendly manner.


Environmental Compliance
Check out the symbols printed on our packaging.
WEEE
RoHS
Recyclable
WEEE and RoHS Compliance Statement
Please find our WEEE and RoHS compliance statements as follows:
WEEE compliance statement (PDF) (Click to open link in new window)
RoHS compliance statement (PDF) (Click to open link in new window)
