IPEVO TOTEM 360 Immersive Conference Camera + Speakerphone

IPEVO TOTEM 360 Immersive Conference Camera + Speakerphone
Part Number: 5-906-2-08-00
Order by Email
Overview Tech Specs Support Gallery
product menu
IPEVO TOTEM 360

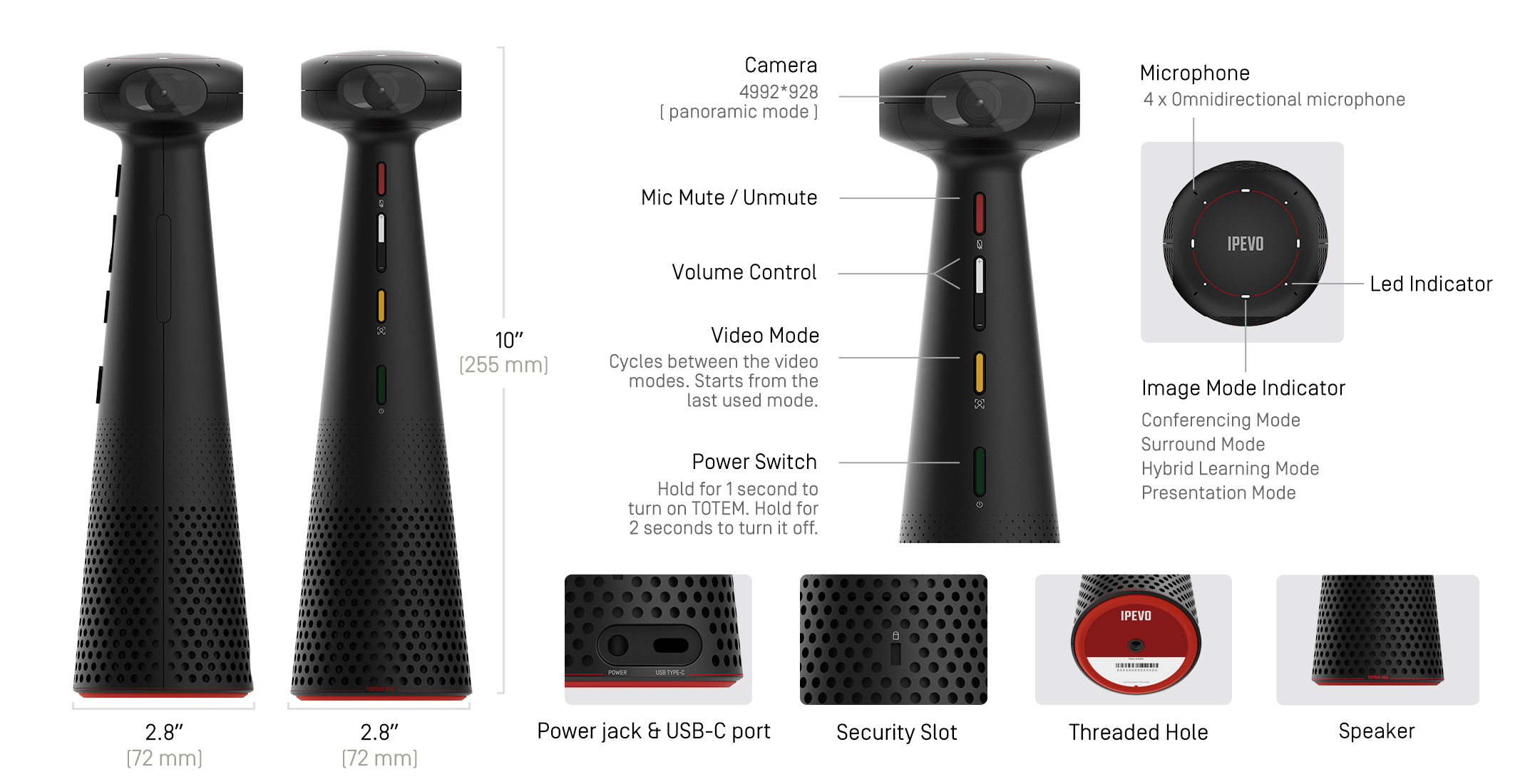

Specifications

Size and Weight
Size
  • ( L x W x H ): 2.8″ x 2.8″ x 10″ / (72 x 72 x 255 mm)
Weight
  • 1.27 lbs (575 g)
Model and Color
Model
  • CDCU-01IP
Color
  • Dark blue  Black
Camera
  • Resolution:
    Panoramic 5k: 4992 x 928 @ 30FPS
    Full HD: 1920 x 1080 @ 30FPS
    1280 x 720 @ 30FPS
    640 x 360 @ 30FPS ( YUY )
  • Lens type: Fixed focus
  • Zoom: 2.5X digital zoom
  • FOV: ( HFOV: 360° , VFOV: 60° )
Built-in Features
Microphone
  • Microphone type: 4 x Omnidirectional microphone
  • Sound pick-up distance: 16.40 ft / 5 m, Range: 360°, S/N Ration 64 dB ( A )
Speaker
  • Peak out power 6 W, root mean square 5 W
Physical Control Buttons
  • Power button, Video Mode button, Speaker Volume button, Mic mute / unmute.
Compatibility and
Output Connectivity
  • Mac, Windows PC, or Chromebooks with a USB Type-C port
  • USB 2.0 Type
Power consumption
  • Power input: DC 12V / 2.0 A ( DC plug )
  • Power consumption: 12V / 0.8A
Operating Temperature Humidity
  • Operating temperature: 41°F to 95°F / 5°C to 35°C
  • Storage temperature: 14°F to 122°F / -10°C to 50°C
  • Operating & Storage Humidity: 10% to 95%
Package Contents
  • IPEVO TOTEM 360
  • USB Type-C cable (5.9 ft / 1.8 m)
  • AC adapter (4.92 ft / 1.5m)
  • Quick Installation Guide
Warranty

System Requirements

Mac
  • MacOS X ( 10.9 and above )
Windows
  • Windows ( 7 and above )
Chrome OS
  • Chrome OS

Sustainability

Treatment Efficiency
IPEVO TOTEM 360 complies with the Waste Electrical and Electronic Equipment ( WEEE ) Directive, and is manufactured, sold and disposed of in a safe and environmentally friendly manner.


Environmental Compliance
Check out the symbols printed on our packaging.
WEEE
RoHS
Recyclable
WEEE and RoHS Compliance Statement
Please find our WEEE and RoHS compliance statements as follows:
WEEE compliance statement (PDF) (Click to open link in new window)
RoHS compliance statement (PDF) (Click to open link in new window)
